As someone who’s constantly tinkering with home automation and surveillance systems, I’ve often found myself grappling with a common modern dilemma: a tangled mess of power adapters and network cables. The challenge of extending my network to power devices like IP cameras, wireless access points, and even mini-PCs in remote corners of my home or office was real. Running separate power lines to each device was simply impractical and aesthetically unpleasing, not to mention a potential fire hazard. This pervasive issue demanded an elegant, integrated solution, and if I hadn’t found one, the complications would have escalated into a truly frustrating and inefficient setup. That’s precisely why a robust YuLinca 6 Port Mini Gigabit PoE Switch would have made an immense difference.
Key Considerations for Your Next Network Switch Purchase
Before diving into any specific product, it’s essential to consider why you’re looking for a network switch in the first place. These devices primarily serve to expand your wired network capacity, allowing more devices to connect reliably. A Power over Ethernet (PoE) switch, specifically, addresses the critical need to deliver both data and electrical power through a single Ethernet cable, vastly simplifying deployments for devices like IP cameras, VoIP phones, and wireless access points, especially in locations where power outlets are scarce or inconvenient. The ideal customer for a PoE switch is anyone from a home user setting up a robust security system, a small business looking to deploy IP telephony, or a tech enthusiast building an advanced smart home infrastructure.
However, a PoE switch isn’t for everyone. If your network consists solely of non-PoE compatible devices (like standard PCs, printers, or gaming consoles that already have their own power supplies) and you don’t anticipate needing to power remote devices, a basic unmanaged switch without PoE might be more cost-effective. Similarly, large enterprise environments often require managed switches with advanced features like VLANs, QoS, and intricate security protocols, which go beyond the scope of a simple plug-and-play PoE solution.
Before making a purchase, consider the following:
* Number of Ports: How many devices do you need to connect, and how many of them require PoE?
* PoE Standard and Budget: Ensure the switch supports the correct PoE standard (e.g., 802.3af, 802.3at/PoE+, 802.3bt/PoE++) and has a sufficient total power budget for all connected PoE devices. Overlooking this can lead to underpowered devices.
* Speed: Do you need Gigabit (1000Mbps) for high-bandwidth applications, or is Fast Ethernet (100Mbps) sufficient? Most modern networks benefit from Gigabit speeds.
* Managed vs. Unmanaged: Unmanaged switches are simple plug-and-play, while managed switches offer advanced configuration options for complex networks. For most home and small office users, unmanaged is perfectly adequate.
* Uplink Options: Does it have dedicated uplink ports (RJ45 or SFP) to connect to your router or other network segments without sacrificing standard ports?
* Physical Design: Consider factors like metal casing for durability and heat dissipation, fanless operation for silent environments, and mounting options (desktop, wall-mount).

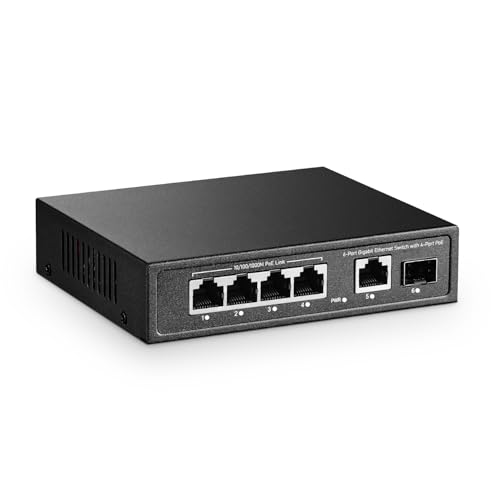

Introducing the YuLinca 6 Port Mini Gigabit PoE Switch
The YuLinca 6 Port Mini Gigabit PoE Switch is designed to be a compact yet powerful solution for expanding your network with Power over Ethernet capabilities. It promises a straightforward, plug-and-play experience, delivering reliable data and power to your compatible devices without complex configurations. Upon purchase, you receive the Gigabit PoE Switch itself, along with a power cord, ready to be integrated into your existing setup.
Compared to generic unmanaged switches on the market, the YuLinca model stands out with its combination of Gigabit speeds across all ports and a versatile uplink structure, including an SFP port, which is often a feature reserved for more expensive or larger switches. While market leaders might offer more advanced managed features or higher total PoE budgets in their premium lines, for its size and price point, the YuLinca delivers a robust set of essential functionalities. It’s an ideal choice for home users, small offices, or anyone needing to deploy a handful of PoE devices without the hassle of network management. It’s not for those requiring advanced VLAN tagging, intricate QoS rules, or a massive PoE power budget for dozens of high-wattage devices.
Here’s a quick overview:
Pros:
* All 6 ports are Gigabit (10/100/1000Mbps), ensuring high-speed data transfer.
* Features 4 PoE+ ports (IEEE 802.3af/at) with a generous 65W total power budget.
* Includes a dedicated Gigabit RJ45 uplink and a Gigabit SFP port for flexible connectivity.
* Unmanaged, plug-and-play design means no complex setup is required.
* Durable metal casing and fanless design provide silent operation and efficient heat dissipation.
* Compact size and multiple mounting options (desktop, wall-mount) make it versatile.
Cons:
* The 65W total PoE budget, while good, means that if all four PoE+ ports are used with devices requiring the maximum 30W each, not all devices can draw full power simultaneously (e.g., max two 30W devices).
* As an unmanaged switch, it lacks advanced network configuration features like VLANs or QoS settings.
* The included user manual could be more detailed or specific to this particular model.
Exploring the Capabilities: A Deep Dive into the Features
Having integrated the YuLinca 6 Port Mini Gigabit PoE Switch into my network for a considerable time, I can confidently share my insights into its key features and the benefits they truly deliver.
Versatile 6 Gigabit Ports (4 PoE+, 1 RJ45 Uplink, 1 SFP)
One of the most compelling aspects of this network switch is its comprehensive port configuration, all operating at full Gigabit speeds (10/100/1000Mbps). This means every single port, whether it’s one of the four PoE+ ports, the dedicated RJ45 uplink, or the SFP slot, supports high-speed data transfer. The significance of Gigabit speed cannot be overstated in today’s bandwidth-hungry environments. It ensures that streaming high-definition video from security cameras, transferring large files to a server, or maintaining a responsive connection for wireless access points won’t be bottlenecked by the switch itself.
The inclusion of four PoE+ ports (Power over Ethernet Plus) is fantastic for powering a variety of devices. I’ve used them to connect my outdoor IP cameras, an indoor wireless access point, and even a small, low-power Raspberry Pi running as a home automation hub, all without needing separate power bricks. This drastically reduces cable clutter and simplifies power management, especially for devices mounted in ceilings or on walls where power outlets are inconvenient.
The dedicated Gigabit RJ45 uplink port is crucial. It ensures that your connection back to your main router or core network is also running at full Gigabit speed, preventing any slowdowns between network segments. But what truly elevates this switch for more advanced users or specific scenarios is the Gigabit SFP port. This slot supports both single-mode and multi-mode optical modules, allowing for incredibly long-distance network connections via fiber optic cables. While I haven’t personally leveraged the SFP port for a full fiber run in my current setup, the mere presence of this feature demonstrates the switch’s forward-thinking design and capability for specialized applications or future expansion. It provides immense flexibility for connecting buildings, extending networks across large properties, or bridging different network segments with high bandwidth and immunity to electromagnetic interference. The ability to transmit data over kilometers via fiber, combined with the compact form factor, makes this an incredibly versatile piece of kit.
Robust IEEE 802.3af/at PoE+ Compliance with 65W Power Budget
The PoE+ switch strictly adheres to the IEEE 802.3af/at standards, meaning each of the four PoE ports can deliver up to 30W of power. This is more than sufficient for most modern PoE devices, including high-definition PTZ (Pan-Tilt-Zoom) cameras, powerful wireless access points, and advanced VoIP phones. The automatic detection of power requirements is seamless; you simply plug in a compatible device, and the switch provides the necessary power without any manual configuration. It intelligently negotiates the power level with the connected device, ensuring optimal performance and protection.
However, it’s important to understand the total power budget of 65W. While each port *can* provide up to 30W, the switch as a whole can only deliver a combined maximum of 65W. This means you can’t power four devices each drawing the full 30W simultaneously (which would require 120W). For example, if you have two devices requiring 30W each, that’s 60W, leaving 5W for other ports. If you have four devices that each consume, say, 15W (the 802.3af standard), then you’re at 60W total, well within the budget. For my setup, with a mix of cameras and a WAP, I’ve found the 65W budget to be perfectly adequate. Most IP cameras typically draw less than 10W, and many WAPs are in the 15-25W range. It’s a key consideration, and a minor disadvantage if you have a dense deployment of high-power PoE+ devices, but for typical home or small business scenarios, it usually won’t be an issue. The switch handles this power allocation efficiently, prioritizing lower-numbered ports if power demands exceed the total budget, though in my experience, I haven’t hit this limit with my current devices. It’s a well-balanced power delivery system for its target audience.
Unmanaged Plug & Play Simplicity
One of the most user-friendly features of the Ethernet switch is its unmanaged, plug-and-play design. From the moment I first unboxed it, the setup was incredibly simple. There’s no complex web interface to navigate, no firmware updates to worry about, and absolutely no configuration required. You just connect the power cord, plug in your network devices, and it works. This truly embodies convenience, especially for users who aren’t network administrators but still want to build a robust and reliable home or small office network.
The switch automatically detects device connections, negotiates speeds, and handles MDI/MDI-X crossover on all ports. This eliminates the need for specialized crossover cables when connecting to other switches or routers, making cable management even simpler. The LED indicators on the front panel provide clear, at-a-glance status updates for power, link, and activity for each port, which is helpful for quick troubleshooting. This straightforward operation is a huge advantage for anyone looking for a reliable, no-fuss networking solution that simply does its job in the background. While the lack of advanced management features like VLANs or QoS might be a drawback for highly specialized or complex network environments, for most home and small business users, its unmanaged nature is a distinct benefit, ensuring ease of use and immediate functionality.
Durable Metal Case & Fanless Design
The build quality of the YuLinca switch is immediately noticeable. It features a robust, full-metal casing that feels substantial and well-engineered. This isn’t just for aesthetics; the metal construction plays a crucial role in its performance and longevity. Firstly, it acts as an excellent heat sink, effectively dissipating heat generated by the internal components, which is vital for stable operation, especially when delivering power over PoE.
Secondly, the fanless design is a standout feature. Unlike many network devices that hum or whir, this switch operates completely silently. This makes it ideal for deployment in noise-sensitive environments like living rooms, bedrooms, or quiet offices, where the constant drone of a fan would be distracting. I appreciate not having another piece of equipment adding to the ambient noise. The absence of moving parts (fans) also means fewer points of failure, contributing to the switch’s overall reliability and expected lifespan.
Furthermore, the compact “mini” size and thoughtful design allow for flexible placement. It supports both desktop placement and wall mounting, with convenient mounting holes on the bottom. I’ve had it discreetly tucked away behind my media console, providing power and connectivity to several devices without taking up much space or drawing attention to itself. The double-sided vents aid in passive cooling, ensuring that even under load, the unit remains cool to the touch. This combination of durability, silent operation, and flexible installation truly makes it a versatile component in any network setup.
Broad Compatibility and Versatile Applications
The YuLinca switch is designed with broad compatibility in mind, making it suitable for a wide array of devices and networking scenarios. Its Plug & Play nature extends to device compatibility; it seamlessly integrates with most standard Ethernet devices. I’ve successfully connected and powered various compatible devices including IP security cameras, wireless access points, and even a couple of older VoIP phones, all without any compatibility issues. It also provides network connectivity for non-PoE devices like laptops, desktop computers, and printers, which can simply plug into any port and receive data at Gigabit speeds.
The switch’s robust performance, combined with its PoE capabilities and Gigabit speeds, makes it an excellent choice for diverse applications. In a home setting, it’s perfect for building out a smart home ecosystem, supporting surveillance systems, or extending Wi-Fi coverage with remote WAPs. For small businesses, it can power office phones, security systems, and provide reliable network access to workstations. Its metal case and stable chips ensure it can be used in various demanding environments, including security monitoring systems where continuous, reliable operation is paramount. The inclusion of the SFP port further broadens its utility, offering options for long-distance data transmission that are typically found in more professional or enterprise-grade solutions. This adaptability ensures that the YuLinca 6 Port Mini Gigabit PoE Switch is a valuable asset, ready to tackle a multitude of networking challenges in both personal and professional contexts.
What Users Are Saying: Real-World Experiences
After perusing countless online discussions and user testimonials, a consistent theme emerges: strong satisfaction with the YuLinca 6 Port Mini Gigabit PoE Switch. Many users have highlighted its exceptional affordability, noting how it transformed their setups by eliminating the need for bulky power injectors for devices like IP cameras. The sturdy metal construction and quiet, fanless operation are frequently praised, making it a favourite for home and small office use. People appreciate the true Gigabit speeds across all ports and the inclusion of an SFP uplink, recognizing its value for future-proofing their networks. While some acknowledged the total PoE power budget needs to be managed for power-hungry devices, the consensus is that this unmanaged switch offers fantastic value, reliability, and ease of use, proving to be a capable solution for both domestic and light commercial applications.
Final Thoughts: Why This Switch Stands Out
The pervasive problem of cluttered cables, insufficient power outlets, and the need for reliable network expansion remains a significant hurdle for many. If not addressed, this can lead to an inefficient, disorganized, and potentially unstable network environment, hindering the performance of crucial devices like security cameras and wireless access points. The YuLinca 6 Port Mini Gigabit PoE Switch is an excellent fit to solve these challenges due to several key factors. First, its Gigabit speeds on all ports ensure your entire network operates at peak performance. Second, the robust PoE+ capabilities simplify installations, delivering power and data over a single cable, which is incredibly convenient. Finally, its durable, fanless metal design combined with plug-and-play simplicity makes it a reliable, silent, and easy-to-deploy solution for anyone from a home user to a small business. Don’t let your network be held back by complexity or poor design. For a powerful, versatile, and user-friendly networking upgrade, click here to check this incredible YuLinca 6 Port Mini Gigabit PoE Switch out and experience the difference yourself.
